產品介紹
機械尺寸
| Structure 結構形式 | Table-Moving type 床台移動式 |
Moving column type 動柱式 |
|||||
|---|---|---|---|---|---|---|---|
| Specifications 機械規格 |

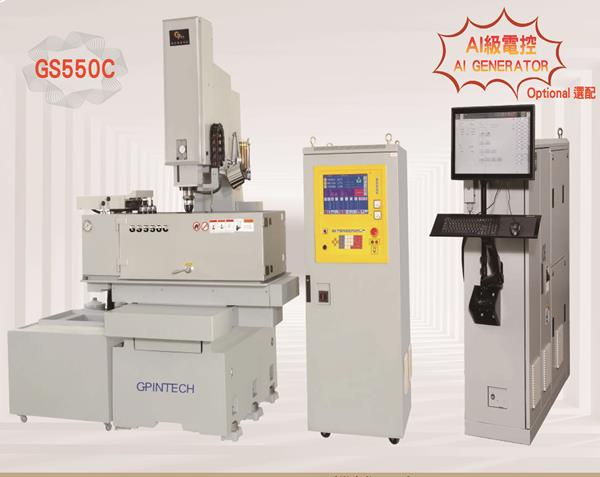

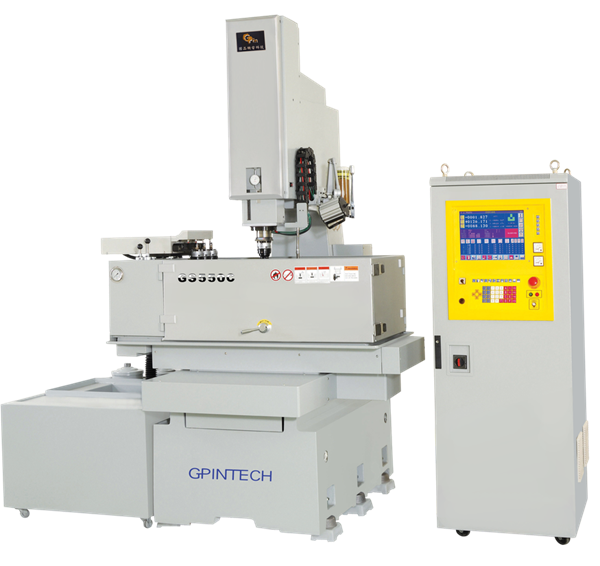

Model(by size) 型號 | GS430C | GS550C | GS500C | GS750C | ||
| Table travel 機台行程 | X | mm(inch) | 400(16) | 500(20) | 500(20) | 700(28) | |
| Y | 300(12) | 400(16) | 400(16) | 500(20) | |||
| Z | 350(13) | 350(13) | 450(18) | 500(20) | |||
| Max. workpiece dimensions(WxD) 最大工件尺寸 |
mm(inch) | 945x510 (36x19) | 1100x630 (43x24) | 1020x710 (40x28) | 1370x850 (54x34) | ||
| Max. filling height of dielectric tank 最大浸油高度 | mm(inch) | 215(8.6) | 260(10) | 355(14) | 355(14) | ||
| Distance between chuck to table 標準夾頭端面至台面距離 |
mm(inch) | 150-450 (5-17) | 135-485 (5-19) | 130-480 (5-19) | 80-580 (3-23) | ||
| Max. Workpiece Weight 最大工件重量 | kg | 550 | 1350 | 2300 | 3000 | ||
| Max. electrode Weight 最大電極重量 | kg | 120 | 220 | 200 | 250 | ||
| Table Size(WxD) 台面尺寸 | mm(inch) | 650X350 (26X14) | 800X450 (31X18) | 850X450 (34X18) | 1000X600 (40X24) | ||
| Machine Weight 機械淨重 | kg | 1200 | 1950 | 3000 | 4500 | ||
| Filter 過濾系統 |
Tank Capacity 容量 | l | 380 | 520 | 850 | 1090 | |
| Filter Density 過濾密度 | μm | 20 | 20 | 20 | 20 | ||
| Filter elements 濾心數量 | Pc | 3 | 3 | 6 | 6 | ||
| Generator 電源箱(標準) |
Max. working Current 最大加工電流 | A | 60 | 60 | 90 | 90 | |
| Overall power consumption 電源容量 | KVA | 6 | 6 | 10 | 10 | ||
| Weight 淨重 | kg | 320 | 320 | 350 | 350 | ||
